Features

  • Multiwall polycarbonate glazing system with upright connection profile
  • Highly versatile system
  • Can be adapted into a number of configurations
  • Suitable for cold curving
  • U-values as low as 1.78W/m2K
  • Available in Marlon BioPlus

Applications

  • Vertical Glazing
  • Partition Walls
  • Pitched Rooflights
  • Curved Rooflights
  • Rainscreens
  • High natural light transmission
  • Thermally insulating multiwall panels
  • UV protection both sides
  • 200 times stronger than glass
  • Light in weight and easy to install
  • Watertight
  • Suitable for cold curving
  • Free thermal expansion
  • Excellent fire performance
  • Limited warranty

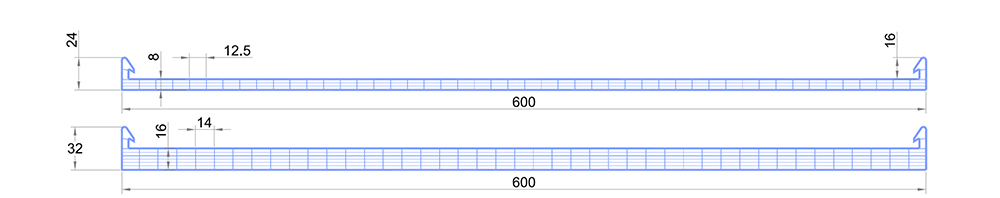

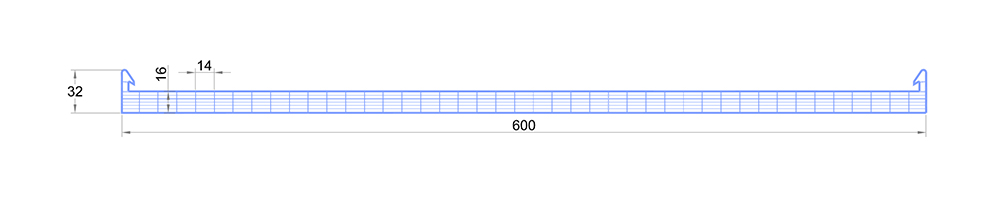

8mm & 16mm Toploc Panel Drawings

Structures: 8mm 4wall, 16mm 7wall

Colours: Clear (g), pearlescent (g), specials*

UV protection: Both sides as standard

Options: Available in Marlon BioPlus

*Subject to minimum order quantities

(g) – glass effect

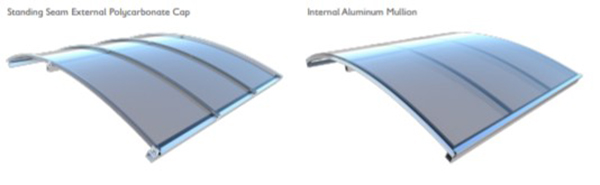

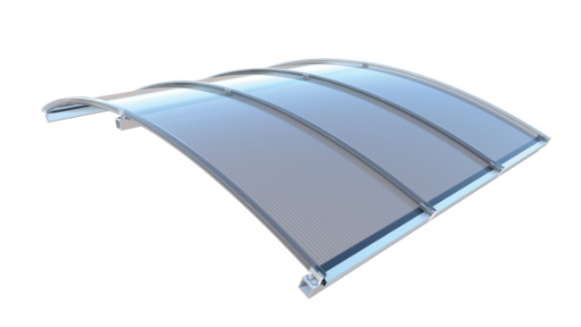

CURVED - MINIMUM COLD CURVING RADIUS 4000MM

Marlon Toploc, curved rooflight

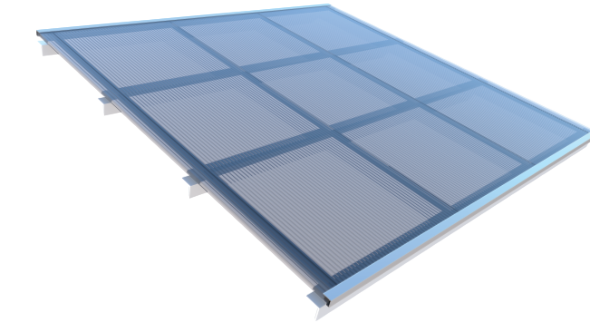

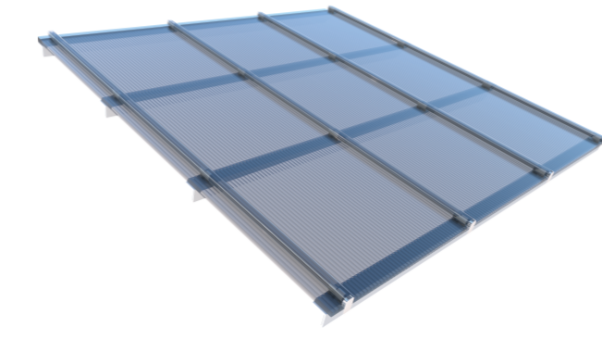

PITCHED - MINIMUM PITCH 5˚

Marlon Toploc, pitched rooflight

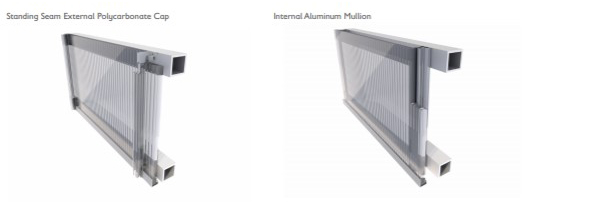

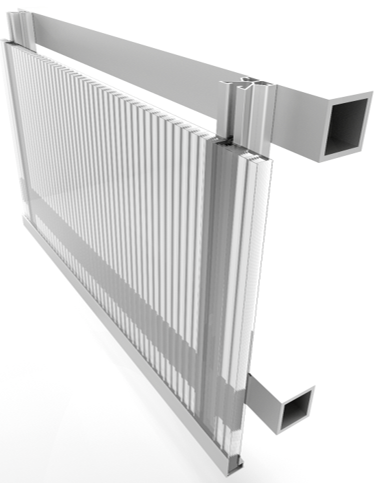

VERTICAL*

Marlon Toploc, vertical facade, partition



* suitable for use with the VF70 & VF90 glazing frame systems

Thickness &
Structure
Light
Clear (g)
Light
Pearlescent (PW)
Solar
Clear (g)
Solar
Pearlescent (PW)
8mm 4wall 74% 60% - 44%
16mm 7wall 64% 56% 60% 33%
  • Marlon Toploc is a high quality, extruded, modular multiwall polycarbonate panel with a co-extruded UV resistant coating
  • As polycarbonate is a thermoplastic, it is important to take thermal expansion and contraction into account during any installation process.
  • Marlon Toploc has been independently tested to various Fire Standards; for the most current certification please contact our Technical Department.
  • Marlon Toploc panels are REACH and RoSH compliant, and 100% recyclable
  • Any colour option is a through-colour so the colour of a cut edge will match the colour of the surface.
  • Marlon Toploc panels are covered by a limited warranty.  For full details contact our Technical Department

Marlon-Toploc_Standing-Seam

  • Standing seam surface finish
  • Suitable for rooflights, canopies and façades
  • Can be installed in vertical, pitched and curved applications
  • Polycarbonate connection cap is light in weight and maximises light transmission

Spanning

It is vital that accurate wind and snow loads are used when calculating spanning details.  Please contact the Technical Department for spanning details for your specific project.



Watch the installation video

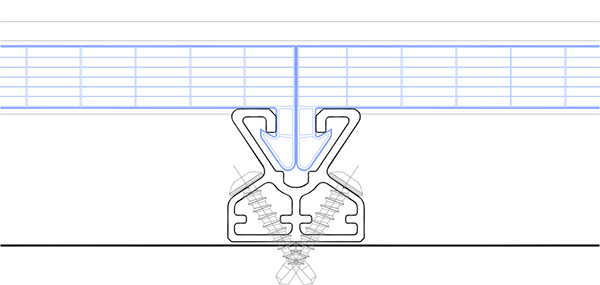

  • Flush surface finish
  • Suitable for rooflights, canopies and façades
  • Can be installed in vertical, pitched and curved applications
  • Aluminium connection profile enhances spanning capabilities

Spanning

It is vital that accurate wind and snow loads are used when calculating spanning details.  Please contact the Technical Department for spanning details for your specific project.

Suitable for use with the VF70 & VF90 glazing frame systems.



As a condition of ensuring that Marlon Toploc panels perform at optimum throughout their service life and retain light transmission properties, it is recommended that the panels be cleaned periodically using suitable household cleaning agents as follows:

  • Use lukewarm water to rinse the sheet and soften dirt.
  • Make up a solution of lukewarm water and ordinary household cleaner or a mild soap and use this to wash the panel.
  • A sponge or soft cloth should then be used to gently remove dirt and grime.
  • The cleaning process should then be repeated and the panel rinsed and dried with a soft cloth.

WARNING

Care should be taken to observe the following precautions:

  1. Do not scrub Marlon Toploc panels with brushes or sharp instruments as they will mark easily.
  2. Never steam clean, use low pressures for pressure washing.
  3. Avoid any abrasives or cleaners of a highly alkaline composition.
  4. It is generally advisable in all instances to test any cleaner on a sample piece of the Marlon Toploc panel first and it should also be remembered that cleaners and solvents which state that they are suitable for cleaning polycarbonate may not be safe for use on the UV protective surface of the panels.
