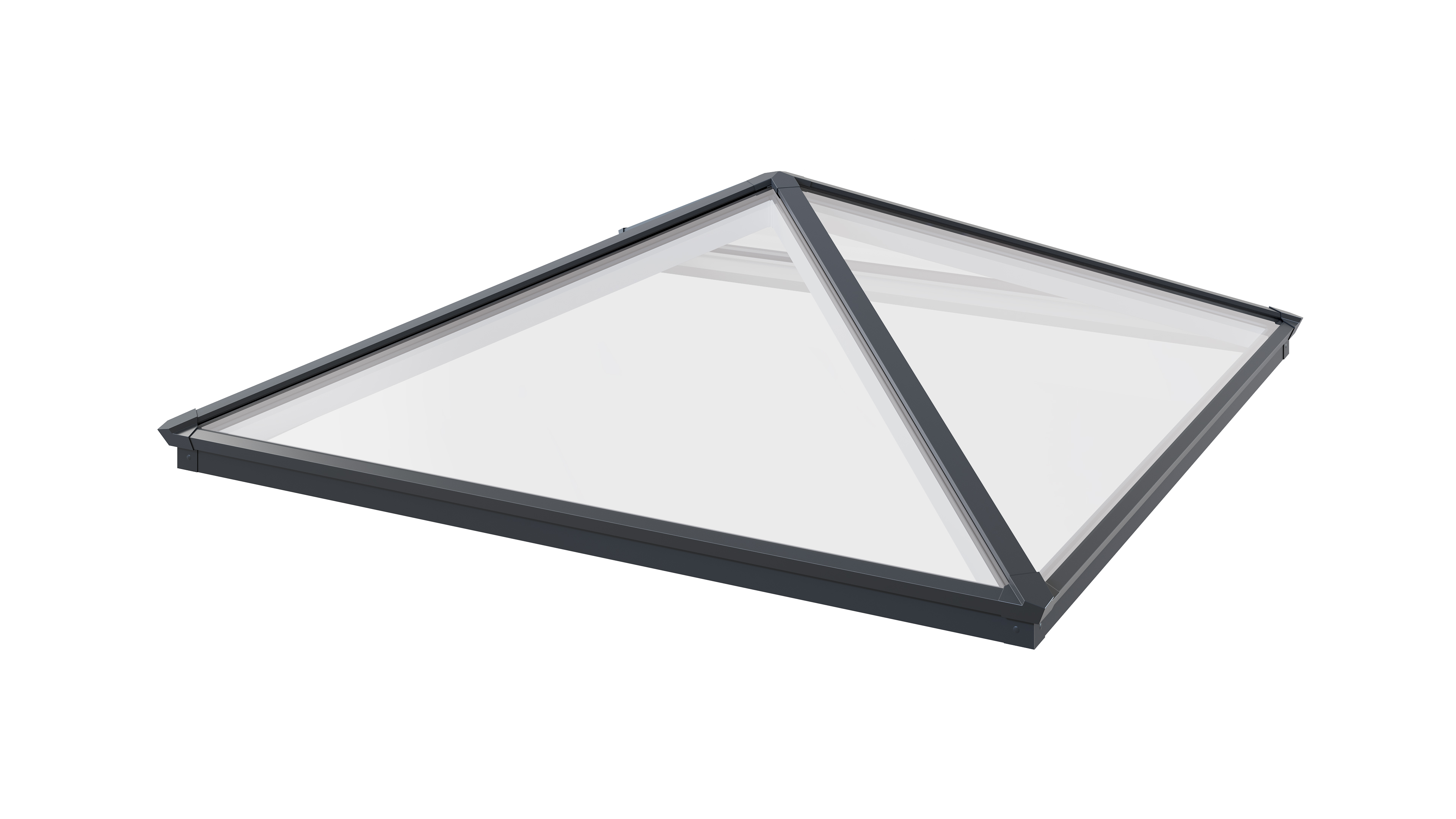

Roof Lantern Pyramid
Create a striking focal point in your living space with the Brett Martin Roof Lantern Pyramid.
As with the rectangular lantern, its slimline profiles allow more daylight to penetrate, and its symmetrical design can provide a focused, even light in living areas as well as smaller spaces and hallways.
The precision in design facilitates easy installation, which means that it is an effective way to transform your living areas. Safety is prioritised as lanterns are supplied with laminated inner panes protecting those below from falling glass if accidentally broken.
Benefits
- Stylish glass rooflight with slender aluminium frame offering clean sight lines and neat junctions.
- Rapid single point delivery in 3-5 days from order
- Designed for rapid installation with no silicone sealant other than to seal between roof and rooflight.
- Offering safety as standard thanks to a laminated inner glass pane protecting those below from falling glass in the event of accidental breakage
- Highly thermally efficient with thermally broken frame and Low-E double glazing
- 10 year warranty available
Features
- Available in 4 standard sizes and bespoke sizes
- Choice of clear self-clean or blue solar-control self-clean glass as standard
- Special glass options also available
- Precision aluminium castings and ridge cap
- Aluminium frame powder coated internally and externally colour combinations of RAL 7016 grey, RAL 9010 white and RAL9005 black
- Designed for simple mounting direct to a weathered builder’s upstand.

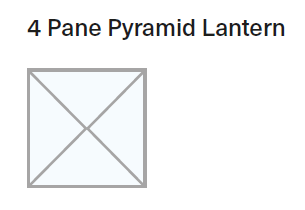

Units are supplied with 4 panes of glass in a contemporary design.
Standard sizes delivered in 3-5 days
- 1000mm x 1000mm
- 1500mmm x 1500mm
- 2000mm x 2000mm
- 2500mm x 2500mm
*Bespoke sizes available. Typically delivered in 15-17 days
- Glazed with Low-E insulated double glazed glass units.
- 4mm toughened outer, 90% Argon filled cavity, 6.8mm laminated soft coat Low E inner with PVB interlayer.
- Choice of clear self-clean or blue solar-control self-clean glass as standard
- Special options available including aqua solar self-clean and neutral solar self-clean.
- Centre pane U value* of 1.2W/m²K
*Centre pane U-value is a measure of the thermal efficiency of the glazing type, measured vertically
Powder coated aluminium frame available in combinations of 3 colours:
- RAL 7016 grey external and RAL 9010 white internal
- RAL 7016 grey external and internal
- RAL 9005 black external and RAL 9010 white internal
- RAL 9005 black external and internal
- RAL 9010 white external and internal
