Roof Lantern
The Brett Martin Roof Lantern brings roof lanterns to a new level. Its attractive slimline profile allows in more light enhancing the quality of extended living areas. The contemporary 4 panel design minimises the structure to maximise the daylight while a 6 panel design features additional glazing bars for a more traditional style.
The Brett Martin Roof Lantern is designed not only to look better but also to perform better. Safety is prioritised as lanterns are supplied only with laminated inner panes for protection from falling glass if accidentally broken. The slimline profiles work with thermally efficient double glazed units and this, together with a simplified installation process, delivers a low maintenance, weathertight solution.
Benefits
- Stylish glass rooflight with slender aluminium frame offering clean sight lines and neat junctions.
- Rapid single point delivery in 3-5 days from order
- Designed for rapid installation with no silicone sealant other than to seal between roof and rooflight.
- Offering safety as standard thanks to a laminated inner glass pane protecting those below from falling glass in the event of accidental breakage
- Highly thermally efficient with thermally broken frame and Low-E double glazing
- 10 year warranty available
Features
- Available in 9 standard sizes and bespoke sizes
- Choice of clear self-clean or blue solar-control self-clean glass as standard
- Special glass options also available
- 4 panes of glass as standard for a contemporary look, with the option of 6 panes for a more classic aesthetic.
- Aluminium frame powder coated internally and externally colour combinations of RAL 7016 grey, RAL 9010 white and RAL9005 black
- Designed for simple mounting direct to a weathered builder’s upstand.
Standard size stock units are supplied with 4 panes of glass for a contemporary appearance.
An optional central rafter on the long side of the rooflight splits the larger glass pane in two, giving the rooflight a more traditional look. This option is also useful where site access is limited.
Standard sizes delivered in 3-5 days
- 1500mm x 1000mm
- 2000mm x 1000mm
- 2000mm x 1500mm
- 2500mm x 1000mm
- 2500mm x 1500mm
- 2500mm x 2000mm
- 3000mm x 1000mm
- 3000mm x 1500mm
- 3000mm x 2000mm
Bespoke sizes available. Typically delivered in 15-17 days
- Glazed with Low-E insulated double glazed glass units.
- 4mm toughened outer, 90% Argon filled cavity, 6.8mm laminated soft coat Low E inner with PVB interlayer.
- Choice of clear self-clean or blue solar-control self-clean glass as standard.
- Special options available including aqua solar self-clean and neutral solar self-clean.
- Centre pane U value* of 1.2W/m²K.
*Centre pane U-value is a measure of the thermal efficiency of the glazing type, measured vertically.

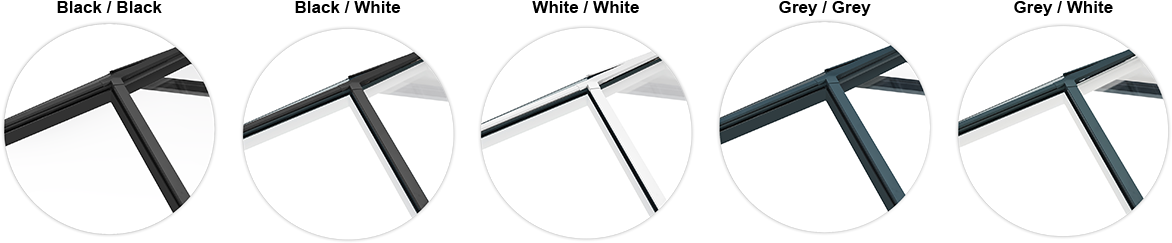

Powder coated aluminium frame available in combinations of 3 colours:
- RAL 7016 grey external and RAL 9010 white internal
- RAL 7016 grey external and internal
- RAL 9005 black external and RAL 9010 white internal
- RAL 9005 black external and internal
- RAL 9010 white external and internal
